Extended drug-resistant Salmonella typhi osteomyelitis: a case report and literature review

Abstract

Background

Salmonella typhi infection commonly results in gastroenteritis, bacteremia with or without secondary seeding, or asymptomatic carrier stage. Few cases of Salmonella typhi bacteremia later result in seeding and ultimately lead to further complications including osteomyelitis and rarely vertebral osteomyelitis.

Case presentation

We are discussing a case of a 38-year-old Asian male patient, with no known comorbids. He presented with fever and backache for 4 weeks. Based on the magnetic resonance imaging (MRI) findings of the spine and positive blood cultures, a diagnosis of XDR Salmonella typhi (S. typhi) osteomyelitis (OM) was made. Patient was started on intravenous therapy as per culture report which was later modified according to treatment response.

Conclusion

S. typhi has a broad spectrum of clinical manifestations including osteomyelitis however to the best of our knowledge this is the first reported case of XDR S. typhi vertebral osteomyelitis. We describe the clinical course of the patient and review the literature regarding the treatment of S.typhi vertebral osteomyelitis with a special focus on XDR S. typhi. Treatment course and complications in view of this new resistant strain have to be reported in order to devise general guidelines for the management in such particular cases.

Background

Salmonella typhi infection commonly results in gastroenteritis, bacteremia with or without secondary seeding, or asymptomatic carrier stage [1]. Over the last three decades emerging antimicrobial resistance in Salmonella has become a global concern including the recent epidemic of extensive drug-resistant (XDR) strain in Pakistan [2,3,4]. Most cases infected with the XDR strain of Salmonella typhi result in bacteremia leading to enteric fever with or without complications. Salmonella rarely causes osteomyelitis in the normal host, though few cases have been reported with either pan sensitive or multidrug-resistant S. typhi strain [5, 6]. Treatment of XDR S. typhi is quite challenging. Till now, no research work has been published to define the standard treatment regimen for XDR S. typhi OM. This rendered the treatment of the above-mentioned complication quite challenging.

Case presentation

A 38-year-old Asian gentleman presented to infectious diseases (ID) clinic with the history of fever for 1.5 months. Fever was high grade and continuous but not associated with rigors and chills and had no specific association with mild relieve on taking paracetamol. Patient had no significant medical, surgical and family history. On examination, he only had fever without any other signs and symptoms. Blood cultures were done which were negative with raised leucocyte count of 12.3 × 10⁹/L. He took 7 days of azithromycin and 15 days of cefixime empirically from a general practitioner and his fever eventually subsided.

He remained asymptomatic for a month after which he presented to his general physician (GP) with complaints of fever and back pain. Fever was low grade (Tmax-100 degrees Fahrenheit), and intermittent with evening rise. Backache was severe in intensity resulting in limited mobilityof the patient. On examination, he was afebrile focused examination was performed which showed tenderness at level of L3 and below without any obvious deformity. There was no sensory loss. He was not taking any antibiotics at that time, so for reaching the root cause of backache and fever, MRI was performed.

Investigations

Treatment response in patient was assessed by ESR and CRP trends in accordance to antibiotics introduction and completion (Fig. 1). MRI done from a local government hospital was not of good quality however it showed abnormal signals indicating spinal abscess in L4–L5 extending into the subdural space, resulting in thecal compression, foraminal stenosis, and meningeal enhancement (Fig. 2). A clinical diagnosis of spinal osteomyelitis was made. Other inflammatory tests were also performed including an Erythrocyte sedimentation rate (ESR) of 94 and leukocytosis of 11.6 × 10⁹/L. He was advised for further workup including brucella serology and a blood culture; however, at that time, the patient refused to undergo any invasive tests. Patient’s treatment response was monitored by serial ESR and C-reactive proteins (CRP) (Table 1). A repeat MRI was performed at the end of therapy, which showed improvement (Fig. 3).

Fig. 1

Graphic representation of effects of antibiotics on temperature, CRP, and ESR

Table 1 Patient’s treatment response monitoring by serial ESR and C-reactive proteins (CRP)

Fig. 2

Pre-treatment/baseline MRI scan

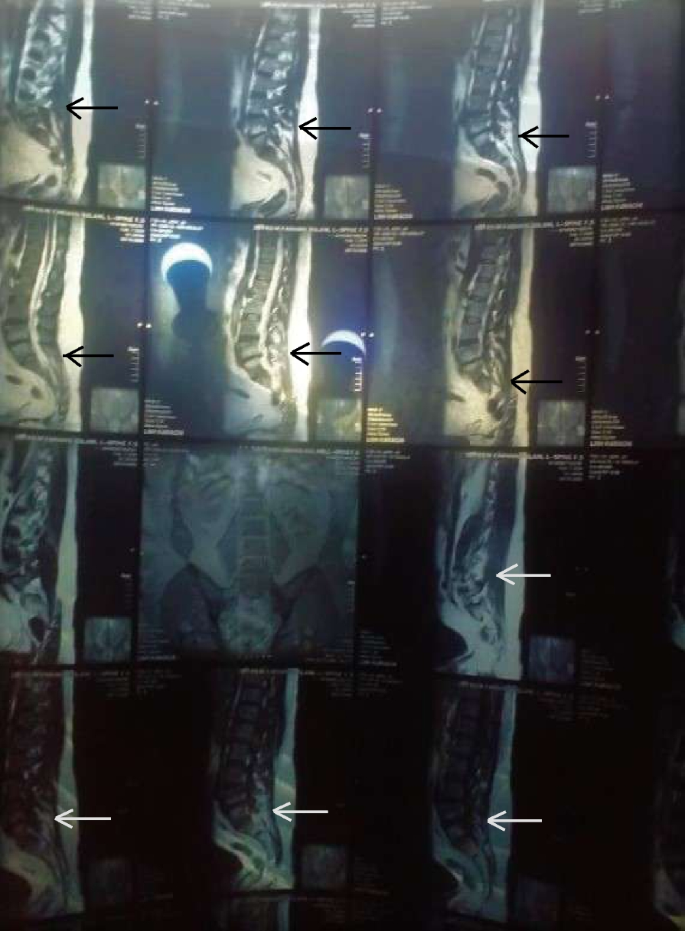

Fig. 3

Post-iv treatment MRI scan

Differential diagnosis

Pakistan like other low- and middle-income countries is endemic for tuberculosis and tuberculosis is the most common cause for spinal osteomyelitis [7,8,9,10,11]. Other common differential diagnoses include brucella [8, 12,13,14] and Staphylococcus aureus [15,16,17,18].

Treatment

In view of high ESR and OM, patient was started on empirical anti-tuberculous therapy (ATT). Despite being compliant on ATT for 6 weeks, patient continued experiencing pain and fever and was referred to ID clinic. An ID physician examined him and advised to get his blood cultures, brucella serology, and inflammatory markers (ESR, C-reactive proteins). Patient’s blood cultures with fever spike grew extensive drug-resistant Salmonella typhi (XDR S. Typhi) (sensitive only to azithromycin and carbapenem-meropenem and resistant to ampicillin, ceftriaxone, fluroquinolones, trimethoprim-sulfamethoxazole, and chloramphenicol). Eventually, diagnosis of XDR S. Typhi spinal osteomyelitis was made and ATT was stopped.

Patient was started on intravenous (iv) meropenem 1 gm every 8 hourly and azithromycin 1 gm loading dose with maintenance dose of 500 mg once a day for six weeks. Traditionally, the treatment duration of spine OM is usually 4–6 weeks and this duration depends on regular and serial monitoring of patient’s signs and symptoms incorporating both radiological and biochemical investigations.

Patient’s fever spaced out on iv meropenem and azithromycin but pain was still present. ESR and C-reactive proteins (CRP) both declined in response to therapy. After 6 weeks of iv meropenem and iv azithromycin, patient showed improvement in terms of clinical aspect (pain was reduced, range of mobility was increased), radiological assay (Fig. 3—repeat MRI showed improvement) and biochemical laboratory values (declining trend of ESR and CRP). However, he was not completely recovered so the decision was made to prolong the treatment course. In view of lack of any clinical archive or guidelines present, the treatment was modified keeping in view the following aspects: the culture report, usual treatment duration of OM and patient’s request.

Patient opted for all oral therapy so iv meropenem was stopped after 6 weeks and azithromycin was switched to oral formulation. Oral azithromycin was continued for 10 weeks in total and the response to therapy was monitored serially.

Outcome and follow-up

After 10 weeks of therapy, when ESR and CRP were normalized (touched baseline values—Fig. 2) and patient’s condition improved, azithromycin was stopped. Patient was asked for a close follow-up after 10 days. On follow-up, he was doing fine with physiotherapy, his fever resolved, and he returned to his usual light household work. On further follow-up after 2 months, he was still doing well and was able to perform his usual household and professional duties.

Discussion

Salmonella typhi is a gram negative Enterobacteriaceae. It rarely causes osteomyelitis and if it does, it is primarily seen in patients with underlying hemoglobinopathies like sickle cell anemia, or thalassemia. This complication is primarily seen in immune compromised patients, those with an autoimmune disorder, neoplastic diseases, AIDS, on long-term steroids or chemotherapy and people who are in extremes of age [1, 19].

XDR S. typhi is the emerging resistant strain in Pakistan that is resistant to ampicillin, 3^rd generation cephalosporins (ceftriaxone), fluroquinolones, trimethoprim-sulfamethoxazole, and chloramphenicol and sensitive to azithromycin and carbapenems (meropenem, imipenem and ertapenem). The diagnosis and management of XDR S. typhi is challenging. Lack of standardized culture techniques and even basic laboratory equipment makes the diagnosis and treatment very difficult. All these factors result in non-standardized treatment regimen for XDR S. typhi complications especially OM. The local guidelines and research papers throw light on the duration and antibiotics options available for management of complicated and un-complicated bacteremia only [20, 21]. A study done in Pakistan showed out of 81 XDR Typhoid patients, 27% were treated with azithromycin alone, 25% with meropenem alone and 48% received a combination of azithromycin and meropenem [20]. Local guidelines from Pakistan recommends treatment based on clinically stability. The dosage of drugs depends on weight and creatinine clearance of patients. For hemodynamically unstable patient (systolic blood pressure less than 90) dual treatment is advised and duration of treatment recommended is 10–14 days [21].

There are rare cases of spinal OM secondary to S. typhi in immune-competent patients that too with non-XDR Salmonella typhi [22]. None of the local guidelines and published materials include OM treatment regimen and duration. The management strategy is subjective and may vary from person to person. Furthermore, the efficacy of antimicrobials in treating this bug and its complications like osteomyelitis are also lacking. There are no studies available defining the pathogenesis of this complication, its impact on health and rehabilitation. Pathogenesis however seems to be the seeding secondary to bacteremia leading to complications. Extraintestinal manifestations are rare with about 8% cases with enteritis, and gastro-intestinal symptoms and rarely endocarditis, pericarditis and abscess formation. However, osteomyelitis remains rare with only 0.45% of cases presenting with this [23,24,25,26].

In literature so far no cases of vertebral XDR–S. typhi OM have been reported in immune-compromised or healthy individuals. However, there is one case report with spondylitis secondary to XDR-Salmonella paratyphi which was resistant to azithromycin and nalidixic acid, determined by next-generation sequencing (NGS), in a 70-year-old male patient. He presented with backache and fevers and had failure of therapy with azithromycin. Patient responded well to ciprofloxacin and cefotaxime combination as evident by improvement in backache and decline of ESR [27].

There are no guidelines available recommending the duration of treatment in patients with XDR–S. typhi OM, IDSA guidelines on both diarrhea and osteomyelitis deal with non XDR Salmonella infections. Similarly, given the rarity of the disease, there are also no clinical trials to determine the clinical response and the drug regimens to be used in such cases [28, 29].

In our patient with an uncommon manifestation of a particularly resistant organism, treatment was challenging. While a biopsy of the bone for culture is recommended in spinal osteomyelitis for definitive diagnosis, the patient was very reluctant to undergo this and in the presence of the positive blood culture and the subsequent initial response, we opted to continue the therapy as per clinical assessment and inflammatory marker response. Finally, in the absence of clear outcome data we managed him on the lines of a severe XDR S. typhi infection with dual antibiotic therapy. While azithromycin has good bioavailability, we opted to use this intravenously for the first 2 weeks, as anecdotal treatment failures have been seen at our center with initial oral therapy. This might be due to the ongoing inflammation in the intestinal wall. Patient responded well to therapy as the strain was sensitive to azithromycin in contrast to azithromycin resistant strain causing spondylitis.

Our case highlights an unusual manifestation of this new strain of S. typhi that recently emerged as an outbreak in Pakistan [30]. It raised a global concern in February 2018, caused by Salmonella enterica serotype Typhi, resistant to first and second-line drugs. We dealt with the challenges associated with the diagnosis and management of this infection in an area endemic for both tuberculosis and S. typhi [29, 30].

Conclusion

Our case highlights an unusual manifestation of this new strain of S. typhi that was recently emerged as an outbreak in Pakistan that raised a global concern in February 2018, caused by Salmonella enterica serotype Typhi (Typhi), resistant to first- and second-line drugs [29, 30]. We dealt with the challenges associated with the diagnosis and management of this infection in an area endemic for both tuberculosis and S. typhi. This case report has the following learning points:

• In view of no established guidelines and randomized control trials for management of XDR S. typhi osteomyelitis, treatment strategy in an endemic region can be directed in view of available/similar case reports [20, 21].

• Management strategy has to be customized depending upon the severity of disease, available antibiotics, resistance pattern, treatment response, and frequency of visits to ID physician.

• Our case is a true depiction of above two points and keeping in view of current situation more cases need to be sought and reported for devising future strategic plans.
