Role of endoscopic ultrasonography in the diagnosis of solid pseudo-papillary neoplasm: Egyptian multi-centric case series and systematic review

Abstract

Solid pseudo-papillary neoplasm (SPPN) is a rare type of pancreatic tumor accounting for less than 2% of all pancreatic neoplasms. Accurate diagnosis of these tumors is very important for proper management. In this study, observations were documented from 18 consecutive cases diagnosed with SPPN using endoscopic ultrasound-guided fine-needle aspiration (EUS-FNA). The data of 18 consecutive cases were prospectively collected and reviewed. The collected data included age, gender, symptoms, size and site of the lesion, and type of surgery performed, in addition to mortality and recurrence rates.

The mean age of the included cases was 33 years, and most of them were females (94.44%). Abdominal pain was the common symptom, and the pancreatic body was the most affected site. EUS-FNA confirmed the diagnosis in all cases when compared to the surgical specimen obtained. Cases were treated either with pancreatico-duodenectomy or distal pancreatectomy. One case (1/18) had early postoperative mortality due to sepsis. The remaining cases developed no recurrence or metastasis during the follow-up period of 18 months.

SPPN is not a common pancreatic tumor. Confirming the diagnosis plays a crucial role prior to surgery as it facilitates intraoperative planning; therefore, EUS-FNA is a golden standard method used to diagnose. Postoperative survival has improved if the tumor is completely removed. EUS-FNA technique is a minimally invasive technique that can provide high yielding in providing detailed diagnostic analysis of SPPN.

Introduction

SPPN are rare pancreatic tumors that account for 0.2 to 2.7% of all pancreatic tumors [1] and 8 to 16% of pediatric pancreatic tumors [2]. This exocrine pancreatic neoplasm arises from undifferentiated pluripotent embryonal cells [3]. It has more predominance in females and mainly occurs in young adults between their second and third decades. Although it is uncommon in men and extremes of age, it has a more aggressive and worse prognosis when present in men [4].

There are multiple nonspecific symptoms of SPPN including abdominal pain, nausea, jaundice, and palpable non-tender upper abdominal mass. Abdominal pain is the most common symptom, reported in more than one third of cases [5].

Various imaging techniques are used for the diagnosis of pancreatic neoplasms including transabdominal ultrasound (US), computerized tomography (CT), magnetic resonance imaging (MRI), and endoscopic ultrasound (EUS).

The EUS has been used widely in the diagnosis of pancreatic lesions, as it provides a better evaluation of the morphological characteristics of the lesions. In addition to the diagnosis, proper preoperative mapping of pancreatic resection is mandatory [6]. It offers the possibility of guiding fine needle aspiration (FNA) punctures with a low complication rate [7].

Complete surgical resection is the treatment of choice. It has an excellent long-term prognosis, since the tumor has an indolent behavior and a low malignant potential [2].

The SPPN could be solid, cystic, or mixed lesions; since these tumors do not induce a typical pattern on radiological examination, the preoperative diagnosis may be challenging in some cases [8].

Aim of the study

Our study describes a case series of 18 consecutive cases diagnosed with SPPN via preoperative EUS guided FNA, along with comparison of our analysis with the cases mentioned in the literature.

Patients and methods

The data of the patients presented to the EUS clinics in three medical centers: Cairo University, Mansoura University, and Assiut University in the period between January 2014 and December 2018 were prospectively collected. Before intervention, all cases were subjected to history taking, physical examination, and routine laboratory investigations (including tumor markers CEA and CA 19-9). Abdominal ultrasonography with triphasic abdominal CT or MRI was ordered for all cases before endoscopy.

An informed consent was obtained from all cases before the procedure after a complete explanation of its benefits and drawbacks. EUS was done Under deep sedation and the lesion was described regarding its site, size, echotexture, and relation to surrounding structures.

To get a biopsy sample by FNA, the trans duodenal route was used for head and uncinate process lesions, whereas the trans-gastric route was used for body and tail lesions. A needle was used to get the sample with at least 2 passes. The sample was sent for histopathological examination and immunohistochemical staining (IHC) when needed.

After diagnosis, radical resection of the tumors was done. The surgical specimen was sent for histopathological examination which confirmed the diagnosis of all cases. After operation, regular follow-up visits were scheduled for 1 and half year, at which clinical and radiological assessments (by abdominal US or CT) of cases were performed.

Results

The mean age of the included cases was 32.78 years. Most of the included cases were females (17 out of 18 cases, 94.44%). All cases presented with abdominal pain while only three cases reported anorexia and weight loss. On examination, a palpable abdominal mass was detected in 4 cases (22.22%).

Demographic description and patient characteristics are described in (Table 1).

Table 1 Data analysis of the patients’ characteristics described in the study

The size of the detected lesions ranged between 3.5 and 13 cm. Eight lesions were located in the body (44.44%), while head lesions were detected in 7 cases (38.89%). Besides, two cases (11.11%) had tail lesions, whereas the uncinate process was affected in only one case (5.56%) (Fig. 1).

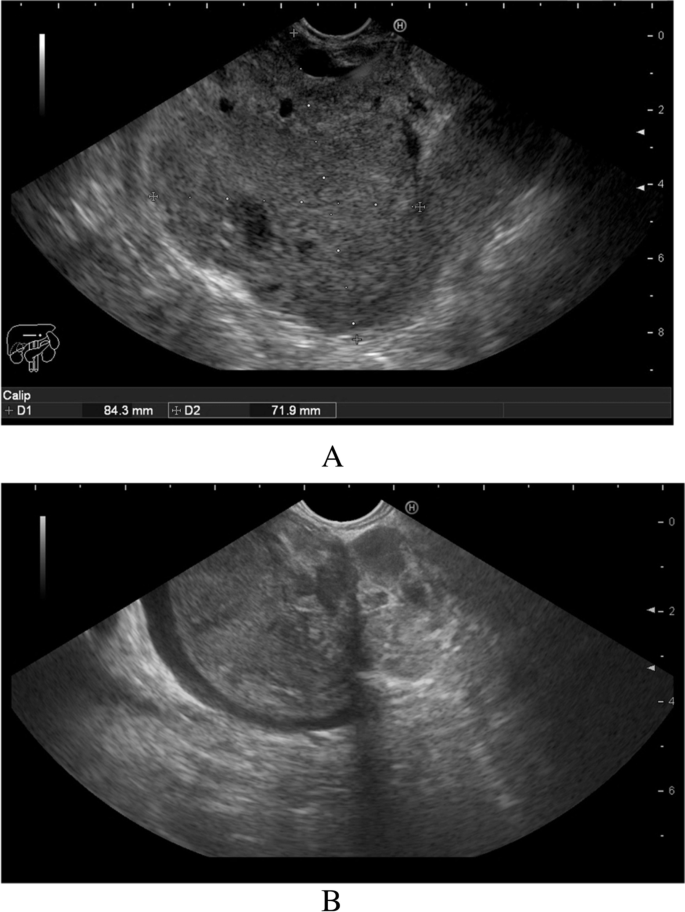

Fig. 1

EUS examination of solid-pseudopapillary neoplasm of the pancreas. A Mass in the head of the pancreas. The mass appears to be heterogenous mass with multiple small cysts (areas of breakdown). B EUS examination of a SPPN in the body of the pancreas seen compressing the confluence of the portal vein with no encroachment (clear line of cleavage)

The cytopathological study demonstrated single cells, small loose clusters, and scattered intact papillary structures with delicate fibrovascular cores, finely granular cytoplasm, and nuclei with fine chromatin.

The different histopathological results of EUS FNA samples examined by a well-trained cyto-pathologist and the different stains and immunohistochemistry examination are illustrated in (Fig. 2).

Fig. 2

Histological examination of solid-pseudopapillary neoplasm of the pancreas. A DQ stain 400 power. B H&E stain ×400 power. C H&E stain cell block preparation ×400 power. Smears of adequate cellularity revealed solid cellular smear patterns formed of cells with small round to oval, occasionally grooved nuclei with finely granular even chromatin, and inconspicuous nucleolus with scant granular cytoplasm. Tumor cells surround myxoid vascular core stains magenta. D Immun-stain with CD10, ×400 power; tumor cells showed diffuse positive immunoreactivity

As regards the surgical procedure, pancreatico-duodenectomy was performed for head and uncinate process lesions, while distal pancreatectomy was performed for other distal lesions. Postoperative course was smooth in all cases, apart from one case (5.56%) who underwent pancreatico-duodenectomy and died of abdominal sepsis secondary to anastomotic leakage. With at least 1 and half year of follow-up for cases, neither local nor distant recurrences were detected on subsequent imaging.

Discussion and review of literature

Frantz was the first to describe SPPN of the pancreas in 1959 [4]. It is an uncommon type of pancreatic tumor that exhibits benign characteristics in most of the cases reported, with a low tendency towards malignant behavior. It is usually discovered incidentally with a great predilection to occur in young women (about 90% of reported cases). However, it can affect men and women of any age group [9]. Other studies confirmed female predominance with a female to male ratio ranging from 5:1.9 [10] to 10:1 [11].

In the current series, most of the included cases were females (17 out of 18 cases, 94.44%), and that agrees with the previously reported in the literature. Of note, the oldest case in our series was 70 years old, and that is a proof that this tumor could be encountered at any age.

Regarding the presentation, about one third of cases could be asymptomatic. However, the presenting symptoms are usually non-specific. Abdominal pain is usually observed in 40% of cases. Other presenting symptoms include increased abdominal girth, jaundice (due to bile duct compression), anorexia, nausea, vomiting, and weight loss [5]. Some cases may present with acute abdomen due to capsule rupture [12]. In this study, abdominal pain was the main symptom, followed by abdominal mass, anorexia, and weight loss.

In our study, the size of the included lesions ranged between 3 and 13 cm. Former study reported that the mean diameter of the tumor was 4.25 cm (range 1.2–6 cm) [9]. A previous larger-scale study stated that tail and head are the commonest affected locations [2]. Our series revealed that pancreatic body was the most affected site, followed by head, tail, and uncinate process. The variance between different series could be explained by using different sample sizes between different reports.

Recently, SPPN has been increasingly diagnosed in clinical practice due to great advances of the exceptional imaging and endoscopic modalities. CT, MRI, and EUS are the most widely used investigations for the evaluation of pancreatic neoplasms [13]. SPPN usually appears like a well-vascularized mass with definite margins, calcifications, and necrotic hemorrhagic components [14]. In our series, all of the included cases underwent abdominal CT or MRI before the EUS procedure. Radiological measurement and site description were similar to EUS findings. Vascular assessment was more accurately evaluated by the EUS examination.

EUS-FNA is now considered the preferable type of diagnosis for pancreatic solid neoplasms. It has a highly noticeable diagnostic accuracy, and it is minimally invasive compared to regular biopsy [9]. It has a sensitivity ranging between 80 and 90%, and a specificity ranging between 85 and 96% for diagnosing such lesions [15]. That agrees with our findings that were totally in line with the postoperative surgical specimen examination. SPPNs are identified by EUS as a well-circumscribed, solid, hypoechogenic, heterogeneous mass with cystic components and calcifications [16].

Histopathological examination of these lesions usually reveals pseudopapillary areas with fibrovascular stems or rosette-like structures secondary to weak neoplastic cell cohesion [17]. Immunohistochemical analysis shows positivity of these tumors towards beta-catenin, progesterone receptor, vimentin, neuron-specific coil, CD10, CD56, cyclin D1, E-membranous, and E-cadherin [5].

Abnormal nuclear expression of beta-catenin is the most sensitive specific marker for SPPN [18]. Moreover, the Ki-67 index has been used as an indicator of tumor malignant potential and poor prognosis. Slow tumor growth is anticipated with a low Ki-67 index (≤ 5%) [19].

A previous study reported the superior efficacy of EUS-FNA in the detection of pancreatic malignant neoplasms and the differentiation between neoplastic and non-neoplastic pancreatic cysts [20]. Law et al. previously published their case series regarding the same perspective and included a total of 34 cases. EUS-FNA was able to identify SPPN in 82% of patients versus 23.5% for abdominal CT findings and 41.2% for EUS alone [20].

No EUS related complications were reported in our series, and that coincides with the previous literature which states that complications are few and reported in only 1% of cases. These complications include acute pancreatitis, fever, abdominal pain, and bleeding [7].

Surgical resection of SPPN usually results in good outcome as the overall survival rate may reach 95%. It is the main management option for SPPN [5, 9]. The type of operation depends on the location of the tumor. If the head or uncinate process is affected, pancreaticoduodenectomy is performed [21], while distal or central pancreatectomy could be considered for tail and body lesions [22]. Our series showed that surgical option leads to good outcomes regarding survival, as during the follow-up period 18 months, no mortality was encountered, apart from the early mortality case due to abdominal sepsis after pancreaticoduodenectomy.

In the literature, the reported mortality rate following surgery for SPPN is only 1% [2]. Pancreatico-duodenectomy is also one of the major pancreaticobiliary operations, with perioperative mortality ranging from 5 to 10% [23].

Although SPPN is known of its low malignant potential, metastasis could develop in up to 15% of cases [24]. Liver, inferior vena cava wall, and spleen constitute the commonest recurrence sites [24], while lymph node metastasis is rarely encountered [25, 26]. Furthermore, about 6% of cases could develop tumor recurrence. Therefore, a strict follow-up is mandatory [2]. In our series, no recurrence or metastasis was detected probably due to the relatively intermediate follow-up period, and small patient sample, respectively.

Conclusion

Solid Pseudo-Papillary Neoplasm is a rare pancreatic neoplasm. Affirming the type of tumor is of vital importance before surgery to provide an accurate intraoperative planning. EUS-FNA is a promising method with high potential to confirm the diagnosis of these lesions. Moreover, a good postoperative outcome is expected if the tumor is completely removed.
