Are African primary physicians suspicious enough? Challenges of multiple myeloma diagnosis in Africa

Abstract

Background

Multiple myeloma is a hematological malignancy of plasma cells belonging to a spectrum of monoclonal protein-secreting disorders known as paraproteinemias. It is classically characterized by accumulated plasma cells in the bone marrow, renal insufficiency, hypercalcemia, and bone lesions (CRAB). Despite studies in the USA indicating that the incidence of multiple myeloma is twice as much in Americans of African descent compared to white Americans and those of Asian descent, African countries have some of the lowest incidence rates and prevalence of the cancer. It is generally thought that this is not entirely factual given the paucity of research into the cancer in sub-Saharan Africa, coupled with other diagnostic challenges such as economic hardships, and poor health-seeking behaviors. In this mini review, we explored the state of multiple myeloma diagnosis across sub-Saharan Africa, outlining the challenges to diagnosis and proposing possible solutions.

Main body

Due to the lack of routine checkups in people > 40 years across sub-Saharan Africa, monoclonal gammopathy of undetermined significance (MGUS) and smoldering multiple myeloma (SMM) are often accidentally diagnosed. This is due to a very low awareness of multiple myeloma among primary care clinicians and the general population. Other major challenges to multiple myeloma diagnosis across Africa include a chronic shortage of human resource (pathologists, cytotechnologists, and histotechnologists), and a prohibitive cost of diagnostic services that discourages early diagnosis.

Conclusion

To improve multiple myeloma diagnosis in Africa, a systems approach to thinking among policy makers, philanthropic organizations, and oncologists must be adopted. Governments must invest in health insurance coverage for cancer patients concurrently with heavy investments in human resource training and diagnostic infrastructure scale up. Creative approaches such as digital pathology, online training of clinicians, research and capacity building collaborations among African institutions, European and American institutions, and pharmaceutical companies as seen with other cancers should be explored for multiple myeloma too.

Background

Multiple myeloma (MM) is a hematological malignancy of plasma cells characterized by the accumulation of clonal plasma cells in the bone marrow, raised calcium in blood, renal impairment, anemia, and bone lesions [1, 2]. It belongs to a spectrum of monoclonal protein-secreting disorders known as paraproteinemias, starting off as a small benign monoclonal gammopathy of unknown significance (MGUS), progressing to smoldering multiple myeloma (SMM) and finally symptomatic myeloma (Fig. 1). Approximately 1% of patients with MGUS progress to symptomatic myeloma per year while between 10 and 20% of patients with SMM progress to symptomatic myeloma per year [4].

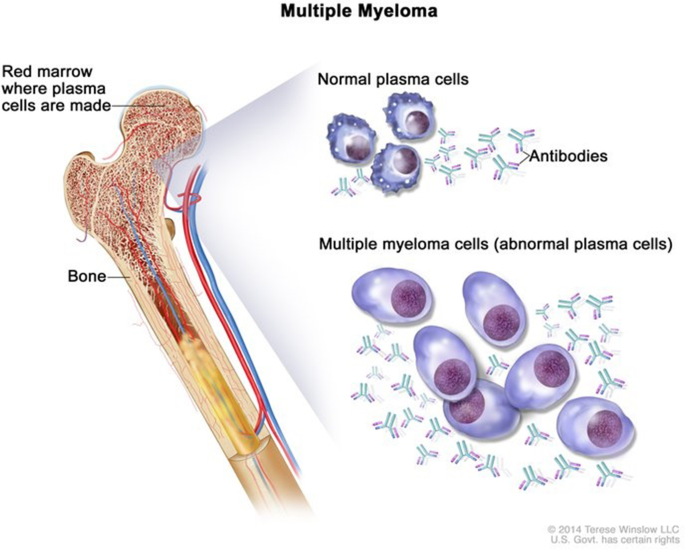

Fig. 1

Plasma cell neoplasm. Source: Winslow [3]

MM constitutes 1% of all cancers globally and accounts for over 10% of hematological cancers [5]. Across Africa, the incidence of MM per 100,000 population ranges from 0.44 in the eastern region to 2.14 in the southern region [6] (Table 1).

Table 1 Multiple myeloma incidence by region across Africa as of December 2020

Studies from the USA show that MM disproportionately affects black Americans more compared to Caucasians and people of Asian descent. Cohen et al. [8] reported that the prevalence of MM among black Americans was 8.4% compared to 3.8% among whites, while Singh et al. [9] found out that the overall prevalence of MGUS was 14.8% among black Americans compared to 7.8% among whites. In fact, the black versus white disparity was more pronounced at a younger age where MGUS was about fourfold higher in the black population compared to matched white counterparts. Moreover, MM is the most common hematological malignancy among black Americans [10, 11]. In a much larger 16-year study on MGUS, it was discovered that the age adjusted prevalence of MGUS was threefold higher in black Americans compared to whites. However, the cumulative risk of developing MM estimated over the first 10 years of follow-up showed no difference between the two races. So, the increased risk for MM among the black Americans resulted from increase in the risk of MGUS rather than increase in the risk of progressing from MGUS to MM [12].

To date, there is not a strong causal link between the black race and MM. Studies have suggested genetic links, autoimmune diseases or certain infectious diseases and toxins but all suffer from low sample sizes, or low response rate from first-degree relatives of MM patients, hence, could not independently link these factors to MM [13,14,15,16,17,18,19,20,21,22,23]. In support of the findings from the USA, studies conducted elsewhere in Ghana showed that the prevalence of MGUS was 5.84% compared to 2.97% in a reference white population [24]. Further studies conducted in Martinique in the Caribbeans, whose population is predominantly of African descent showed that it has the second highest prevalence of MM in the black population after the USA [11]. Despite these stark racial disparities in the prevalence of MM, Sub-Saharan African countries still have some of the lowest incidence rates and prevalence of MM compared to countries in Asia, Europe, and the Americas [25], something of a contradiction to the emerging facts. It is often suspected that the true prevalence of all cancers, including MM on the continent, is grossly underestimated. A 2018 report, on the global incidence of MM, revealed that missed diagnosis and poor record keeping were the major cause of the observed low prevalence in most countries [25]. Before March 2012, only three population-based cancer registries existed in the entire Sub-Saharan Africa (Gambia, Harare, and Kampala), covering 1% of the population compared to the USA where 80% of the population are covered by up-to-date registries [26]. The African cancer registry network (AFCRN) presently with 46 member countries in Africa has been created to provide leadership and technical support for cancer surveillance across the continent; however, not all the 52 African countries have joined, and given its heavy reliance on donor funding, long-term sustainability remains a challenge worth looking into [27].

Data from the last two decades on the trends in the incidence of MM in Sub-Saharan Africa over time is hardly available. In the absence of MM data, parallels can be drawn with trends in other cancers prevalent on the continent. Data published by Hamidi and colleagues [28] showed that there is a transient increase in the incidence rates of most of the cancers on the continent as awareness and diagnostic capacity improves (Fig. 2). This is likely true for multiple myeloma (MM) as well. In fact, recent studies from across the continent though sporadic, present data indicating a gradual increase in MM incidence. For instance, in Nigeria, MM now accounts for over 8.2% of all hematological cancers, while in Uganda, between 1991 and 1995, 1996 and 2001, and 2002 and 2006, there has been a progressive increase in incidences from 0.4 to 0.7 to 0.9 (per 100,000) in men and 0.5 to 0.9 to 1.7 (per 100,000) in women respectively [29, 30]. Therefore, with improved MM awareness among the general population and physicians, improved diagnostic capacities will have notification of more cases.

Fig. 2

Trends in the incidence rates (per 100,000 inhabitants) of the most prevalent cancers in Africa between 2002 and 2018 (GLOBOCAN reports; Global Cancer Statistics) [6]

Multiple myeloma standard diagnostic criteria

According to the revised International Myeloma Working Group (IMWG) criteria for the diagnosis of MM, in addition to the classical CRAB (calcium elevation, renal damage, anemia, and bone disease), new features have been added for consideration in the final diagnosis. The new definition of an active myeloma is therefore as presented in Fig. 3.

Fig. 3

IMWG revised multiple myeloma diagnostic criteria

In addition, MGUS and smoldering multiple myeloma are also defined. MGUS is diagnosed as follows: Serum monoclonal protein < 30 g/L, clonal bone marrow plasma cells < 10%, and the absence of end-organ damage such as hypercalcemia, renal insufficiency, anemia, and bone lesions (CRAB) or amyloidosis attributable to the plasma cell proliferative disorder. Smoldering MM meanwhile is defined as serum monoclonal protein (IgG or IgA) ≥ 30 g/L or urinary monoclonal protein ≥ 500 mg per 24 h and/or clonal bone marrow plasma cells 10-60%, and absence of myeloma-defining events or amyloidosis [31].

Challenges of multiple myeloma diagnosis across Africa

Low clinician suspicion index, population awareness, and access to diagnostic services

Multiple myeloma is preceded by an asymptomatic, silent premalignant condition called monoclonal gammopathy of undetermined significance (MGUS) and an intermediate stage in a small section of patients called smoldering multiple myeloma (SMM) [29, 32]. It is approximated that MGUS and SMM progress to full blown multiple myeloma at a rate of 1% and 10% per year respectively [33, 34]. Due to the lack of routine screening for MGUS and SMM among the population at risk (> 40 years old) in almost all African countries, the two conditions are often accidentally diagnosed when increased monoclonal (M) proteins are detected in patients being examined for different illnesses such as back pain linked to degenerative spine diseases, anemia, and renal failure linked to different systemic comorbidities, bone pain linked to polymyalgia rheumatica, or bone lesions and hypercalcemia linked to metastatic cancer originating from elsewhere [35]. Low suspicion index of MM among clinicians results into patients’ initial symptoms being ignored or missed. Nwabuko and colleagues, in the Niger Delta, reported that majority of the MM patients diagnosed were referrals from the orthopedics, who presented with pathological fractures and were first managed by the orthopedic surgeons as skeletal-related events without making primary diagnosis [36].

Majority of MM patients at first hospital visit are attended to by primary care clinicians, outside the hematology unit [37]. Primary data on the awareness about signs and symptoms of MM among primary care clinicians in sub-Saharan Africa is scarce. Both Nwabuko et al. [38] in Nigeria and Oduor et al. [39] in Kenya reported very low clinician awareness about the signs and symptoms of MM, but without formal surveys, and attributed most of the late diagnoses observed to this challenge. Studies on the knowledge about cervical cancer screening among health care workers in Nigeria and Zimbabwe revealed an alarming majority of the health care workers did not know about screening for the cancer [40,41,42]. Cervical cancer is a very prevalent cancer in Africa and so it can be inferred that their knowledge on MM which is a relatively low-rate malignancy would equally be very low. Although the international myeloma foundation (IMF) designated March every calendar year as the international myeloma awareness and action month, activities to promote MM are not very visible in Africa. In Nigeria, the Princess Nikki foundation organizes an annual meeting involving between 12 and 18 spouses of the African heads of states and public health experts from the USA, Europe, and Africa to discuss cervical cancer and other cancers affecting women, while several other African countries, including Zambia, Ethiopia, Kenya, and South Africa, have utilized radio, television, and print media to promote cancer awareness, but multiple myeloma does not feature prominently in these awareness campaigns [43]. Country specific associations of oncologists and MM associations will have to deliberately and aggressively solicit for publicity to ensure the public is made aware of MM and its symptoms.

In addition to lack of awareness about MM, limited access to diagnostic facilities is another major challenge for MM patients. Acquah and colleagues [44] in Ghana studied 169 MM cases over a period of 14 years and reported that in the entire period, none of the cases was screened for MGUS or SMM. They further noted that 31.5% of the patients were diagnosed after 12 months of illness. This implies that in the 12-month period, these patients probably moved from one health facility to another seeking treatment yet none of the clinicians could suspect MM. Like most African countries, Ghana does not include screening for paraproteinemias on its routine health checks in primary care facilities; one is due to low prevalence of MM but secondly because of severe inadequacy of diagnostic facilities countrywide [44]. Ngouadjeu et al. [45] in agreement with this Ghana study also assessed 62 myeloma patients at a tertiary hospital in Cameroon, and discovered that 61.2% of them were diagnosed at stage III of the disease; a late diagnosis that is a predictor for poor prognosis. Okello et al. [46] in Uganda assessed records of 217 MM patients over a period of 5 years at the Uganda Cancer Institute—a regional institute serving patients form the Democratic Republic of the Congo, South Sudan, Kenya, Tanzania, Burundi, and Rwanda—and found out that the center lacked key test procedures required in the workup of MM patients. For instance, majority of the patients did not have results for beta-2 microglobulin and immunofixation tests concurring with a similar study in Kenya where out of 194 patients assessed, only 52.6% had at least one radiology test done at diagnosis [47]. Furthermore, genetic aberrations, such as t(4;14), t(11;14), monosomy 13/del13q, and monosomy 17/del17p, are known to be associated with poor prognosis in myeloma patients, and are routinely used to choose personalized chemotherapy options for specific groups of patients, and so gene profiling tests are routinely done. In this study, it was discovered that these tests are not available at the facility [46]. The above challenges indicate the stark differences in awareness and availability of diagnostic services for MM between high-income countries and low-resource settings which could account for the seemingly low prevalence of the cancer on the African continent.

Prohibitive cost of diagnostic services

Histopathology, cytology, and molecular tests required to diagnose multiple myeloma and other cancers in general are labor intensive and expensive [48]. While expenditure on laboratory services as a proportion of total healthcare expenditure in high-income countries range between 3 and 6%, in sub-Saharan Africa, it is generally below 1% apart from South Africa (3.5%) and Uganda (3.3-4.6%) [49,50,51,52,53]. Cancer care is primarily a function of government and faith-based hospitals across most African countries where diagnostic prices are subsidized. The challenge with public facilities across Africa is the gross inefficiencies and chronic shortage of essential cancer diagnostic supplies and drugs. A study by Boateng et al. in Ghana found out that 88% of essential cancer drugs and supplies were stocked out for a median duration of 70 days [54], while Martei et al. reported 40% stock out of essential cancer drugs in Botswana with a median duration of 30 days [55]. Similar situations have been noted in other countries across the continent. The WHO estimates that two-third of the world’s population do not have access to basic diagnostic X-ray services while between 50 and 80% of all medical equipment in developing countries are non-functional, posing a significant challenge to cancer diagnosis, including multiple myeloma (MM) [56, 57]. The list of available essential radiology equipment for MM diagnosis by regions in Africa as compiled by WHO was extracted and presented in Tables 2, 3, 4, 5, and 6 [57]. Private sector players have adapted to fill the crucial gaps left during these intermittent stock outs of cancer supplies and break down of diagnostic equipment. Unlike public facilities, however, private diagnostic facilities require out of pocket payment which is often quite expensive for an average citizen. For instance, the standard MM diagnostic criteria as stated in Fig. 3 includes at least bone marrow biopsy, serum calcium and creatinine analysis, X-ray or CT scan, and immunoglobulin free-light chain analysis. Looking at the private diagnostic prices of these tests as estimated from Lancet laboratories LTD—a private diagnostic laboratory with branches in 12 countries across Africa—in Table 7, a patient will part with at least 156.6 USD to confirm their diagnosis [58, 59]. Given that 490 million people, approximately 36% of Africans live in extreme poverty [60], it is almost certain that most patients will not afford this cost and hence never get diagnosed.

Table 2 WHO essential radiology equipment for MM diagnosis by region (Central Africa)

Table 3 WHO essential radiology equipment for MM diagnosis by region (Eastern Africa)

Table 4 WHO essential radiology equipment for MM diagnosis by region (Northern Africa)

Table 5 WHO essential radiology equipment for MM diagnosis by region (Southern Africa)

Table 6 WHO essential radiology equipment for MM diagnosis by region (Western Africa)

Table 7 Multiple myeloma diagnostic tests and their average prices in the private sector

In the developed economies, national health insurances covers most if not all cancer care costs. In Africa, however, health insurance penetration is still low and varies widely among countries, e.g., while Rwanda as of 2017 had 87% coverage, Nigeria had a mere 3% in the same year, South Africa 17%, Kenya 10%, and Tanzania 3% [61]. Most African countries employed the Bismarckian social health insurance systems, where mostly formal sector employees jointly contribute for coverage with the employer [62]. Recently, however, community-based health insurance schemes have been successfully piloted and implemented to cover the informal sector workers [63]. Unlike other diseases, cancer care is long-term and expensive, so private insurance players dodge them. In certain African countries, government interventions have at least increased cover for cancer care. For instance, in 2016, Kenya national insurance system boldly introduced cancer care package for the 18% of Kenyans it covers [64]. Similarly, Rwanda’s Mutuelle de Santé, the national health insurance scheme reimburses all cancer care costs [64]. While Botswana in 2015 incorporated 80% of the cancer medications added onto the WHO essential medicines list into their national essential medicines list, essentially making them free for all cancer patients who need them [64]. To improve multiple myeloma diagnosis on the continent, such bold moves must be replicated by other African governments to ease the burden of out-of-pocket payments on the cancer patients and encourage early diagnosis.

Shortage of human resource (pathologists, histotechnologists, and cytotechnologists)

Multiple myeloma diagnosis just like other cancers is provided by a medically trained pathologist with support from non-medically trained scientist histotechnologists and cytotechnologists. The histotechnologists and cytotechnologists provide the technical expertise required to process tissue and fluid specimens in preparation for examination by the pathologists [48]. Across Sub-Saharan Africa, due to the chronic shortage of pathologists, cancer care is only offered at the national referral hospitals which are often in the capital cities, creating a significant barrier in terms of access to care by patients in the country sides. It is estimated that the ratio of pathologist to patient in Sub-Saharan Africa is 1:1,000,000 compared to 1:25,000 in the USA or 1:36,000 in the UK [65]. In Cameroon, by 2016, the number of pathologists to patients was estimated to be 0.28:1,000,000 while that of cytotechnologists was 0.23:1,000,000 [66]. Similarly, in Zambia by 2009, there were less than 10 anatomic pathologists in the whole country, a ratio of 1:1,400,000 inhabitants at a time when the UK had over 1800 anatomic pathologists serving 66 million people at a ratio of 1:36,000 inhabitants [65]. The highest recorded ratio of pathologist to patient in Africa is 4.45:1,000,000 in South Africa, still grossly insufficient [67]. The dire implication of these figures is that it becomes virtually impossible to decentralize cancer care, as a result to the relatively low-rate cancers like multiple myeloma are never prioritized.

The future of the pathology work force in Africa is not certain either. By 2013, only 168 medical schools existed in 47 Sub-Saharan African countries surveyed; 24 of these countries had a single medical school while 11 had none [68]. Furthermore, the total number of students graduated by these medical schools is extremely low for the population they serve, with only a handful proceeding to pursue a career in pathology [69]. It is “comically” estimated that at this rate it will take over 400 years for Sub-Saharan Africa to match the pathologist to patient ratio of the USA and UK [48]. In addition to the lack of pathologist training, many Sub-Saharan African countries also do not have training programs for medical laboratory scientists, cytotechnologists, histotechnologists, and biomedical engineers required to maintain diagnostic equipment [70]. Often times where pathologist trainings exist, they are not aligned with the training of histotechnologists and cytotechnologists who are required to support pathologists in cancer diagnosis. Inadequate human resource is thus a huge barrier to multiple myeloma diagnosis across the continent and must be prioritized for diagnosis to improve.

Attempts to solve the dire shortage of pathologists have led to some ingenious solutions in certain African countries. For instance, in Cameroon, one faith-based hospital, piloted the use of histopathology slide scanners to take pictures of stained slides and electronically submit to a remote pathologist to make diagnosis [71]. Though a step in the right direction, still sample preparation requires trained laboratory scientists, cytotechnologists, and histotechnologists to carry out, in addition to a well-equipped histopathology laboratory capable of performing hematoxylin and eosin staining, and some special staining techniques. Preparation of histopathology slides require at least 12 h of uninterrupted power supply. In this project, the hospital reported frequent power cuts—a notorious challenge across Sub-Saharan Africa—that often forced the technicians to finish the process manually or repeat the entire procedure, hence, causing substantial delays in diagnosis. Secondly, huge amounts of internet data are required per day (5 GB), to submit the results coupled with poor internet connectivity in the area, another substantial challenge across the continent [71]. The challenges notwithstanding this method if well harnessed can in the short term solve the shortage of onsite pathologists and should be encouraged.

Collaborations among African oncologists’ associations, their European and American counterparts, Universities and Pharmaceutical companies to conduct scientific research, short- and long-term capacity building trainings, and research fellowships, are some of the tried and tested strategies used to build capacity of African scientist and oncologists to manage certain cancers. Examples of such collaborations include Men of African Descent and Carcinoma of the Prostate (MADCaP) consortium having multiple centers in Senegal, Ghana, Nigeria, Sudan, Uganda, Botswana, and South Africa; Women of African Ancestry Breast Cancer Consortium operational in Nigeria, Ghana, Cameroon, Uganda, and Senegal; and the Operation Stop Cervical Cancer Nigeria—a multilateral collaboration of the MD Anderson Cancer Center, British Columbia Cancer Agency, Rice University Department of Bioengineering, and the University of Ibadan School of Medicine. African associations of multiple myeloma oncologists and care givers could thus seek such collaborations to ensure trainings for more MM dedicated oncologists and care givers and mobilization of funds for setting up more diagnostic infrastructures [72,73,74,75].

Conclusion

In a nutshell, therefore, the challenges to multiple myeloma diagnosis in Sub-Saharan Africa are mainly in three categories: low suspicion index among clinicians and limited access to diagnostic services resulting into missed diagnosis; high cost of private diagnostic services that complements the scarce public care, hindering patients’ ability to seek early care or afford the available tests required and; chronic shortage of human resource (pathologists, histotechnologists, and cytotechnologists), making it impossible to scale up and decentralize care. These are challenges that require a systems approach to thinking among policy makers, philanthropic organizations and the clinicians at the forefront of multiple myeloma care. It is thus important that the necessary investments in both infrastructure and human resource are made, more research conducted to ascertain local burden of the cancer and in the meantime, clinicians made aware of the cardinal signs of MM through continuous medical education so that maximizing the available diagnostic capability, they can start seriously considering MM in the differential diagnosis of cases presenting as such.

Possible solutions and future prospects

Across all the studies reviewed above, bone pain (61.9-95.0%), anemia, and renal insufficiency were the major complaints at presentation in MM patients [44,45,46]. If primary care physicians are made aware of these cardinal signs of the disease, incorporating MM suspicion in the differential diagnosis of patients with such complaints will drastically improve its surveillance and case notification. This goes in tandem with research into the local incidence and prevalence of the disease to offer objective basis for including MM in the differential diagnosis of patients with the above symptoms at presentation.

When African presidents met in Abuja, Nigeria, in April 2001, they committed to allocating 15% of their total budget to health [76]. This should not stop in rhetorics but fully implemented. Compared to high income countries that spend over $4000 per capita on health, African countries spend between $8 and $129, a drop in the ocean. The WHO estimates that about 100 million people are pushed into extreme poverty every year due to out-of-pocket spending on healthcare [77]. Such spending forces patients to underinvest in treatment creating situations where they opt to avoid diagnostic services as they do not see immediate value in diagnostics compared to treatment. Therefore, the WHO’s call for universal health coverage must be echoed louder if we are to see improvements in multiple myeloma diagnosis and care. Government investment, private insurance, and key philanthropic partnerships such as the 2017 American Cancer Society and the Clinton Health Access Initiative agreement with pharmaceutical companies to bring down the cost of essential cancer drugs should be explored in areas of diagnostics [78]. This will ensure the most vulnerable multiple myeloma patients get access to the diagnostic services they urgently need.

Lastly, solving the challenge of shortage of skilled human resource such as pathologists will require massive investment in medical training and offering pathologists competitive renumeration packages to keep them in public service. These are long-term goals that governments across the continent must not shy away from as there is no quick fix. In the meantime, creative solutions such as leveraging technological advances (digital pathology) to connect onsite labs with offsite pathologists as seen in Cameroon, online training via Skype as seen in Nigeria [64], and collaborations with universities and pharmaceuticals for capacity building will go a long way in solving the human resource shortages.
